TUNNELFLEX/PUR - 0,6/1 kV
FE4OPu
Main application
Power supply to mobile equipment with high risk of mechanical damage in mining and tunneling. TUNNELFLEX cable is suitable for application where it is deflected in one plane only. Maximum speed 60 m/min

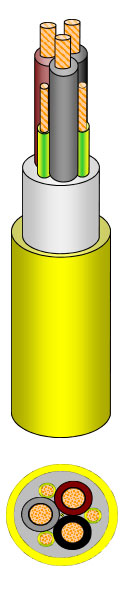

Construction
Conductor: Plain copper, flexible class 5 IEC 60228
Insulation: XLPE special compound Brown - Black - Grey
Conductor: Plain copper, flexible class 5 according to IEC 60228
Insulation: XLPE special compound colour: yellow/green
Cores arrangements: Phase cores laid up with earth cores in the interstices
Bedding: Special flexible technopolymer compound
Outer sheath: Polyurethane special compound
abrasion and tear resistant, excellent hydrolysis resistant colour : YELLOW
Marking: PALAZZO - TUNNELFLEX/PUR 0,6/1 kV 3x..+3x.. CE - year
